Union's Classic range of 3 lever sashlocks suitable for internal doors.
- Complete with striking plate and fixings
- Supplied with 2 keys
Application: Wooden doors hinged on the left or right and requiring key and lever handle operation. Operation: Deadbolt locked or unlocked by key from either side. Latchbolt withdrawn by lever handle from either side. Pierced to accept bolt through furniture.
Recommended
Security Rating: 4/10
Key Profile: Standard
Finish: Finish shown in Polished Brass .
Also available in Satin Chrome.
Case Material and Finish: Steel,
Silver Enamelled.
Forend: Stainless Steel, finished to match strike plate.
Striking Plate: Stainless Steel, finished to match forend.
Latchbolt/Deadbolt: Deadbolt - Brass, hardened steel rollers. Latchbolt - Brass.
Follower: Brass, 8mm square.
Spare cut keys reference MM (numbers range 101-200).
Union 3 Lever Mortice Sash Lock

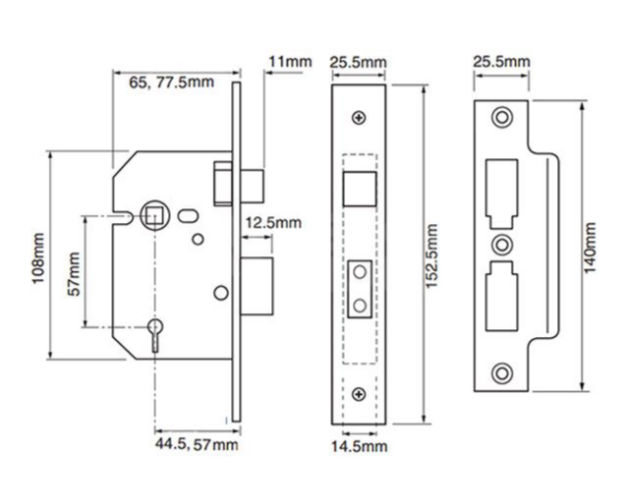

Part Min (mm) Max (mm) centres 57 - Backset 44.5 57 Bolt Length 12.5 - Case Width 65 77.5 Case Height 108 - Forend Width 25.5 - Forend Length 152.5 - Strike Plate Width 25.5 - Strike Plate Length 140 - Brand
Union
SKU
U2277
Box Contents
2 Keys
Strike Plate
Fixing Screws
Instructions
Mortice Lock
Key Profile
Key Profile: Standard
